£35.00 inc VAT

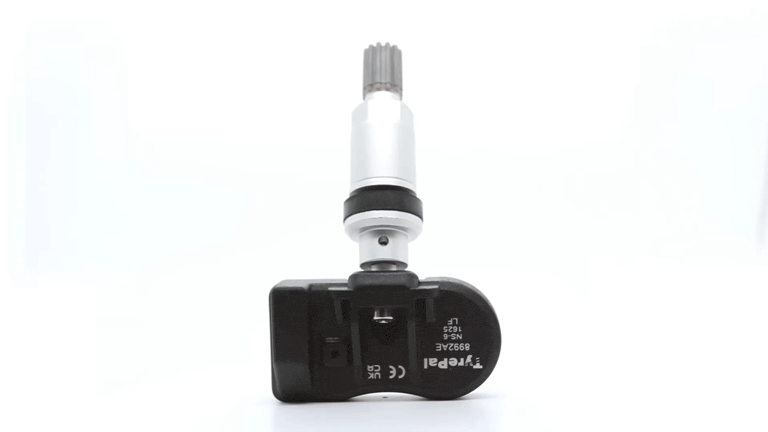

Internal tyre pressure sensor
About This Product
Our internal sensor provides a robust and long lasting option to our standard TCSO sensor
These sensors are direct replacement for your Bailey OEM sensors
The internal sensor is a perfect option for classic and cherished cars looking for a discrete aftermarket tyre pressure sensor
Compatible with our TC215 monitor and smart signal repeater
Specification as follows:
| TPMS INT 01 | Internal OEM caravan sensor with LF |
| Dimensions | 60 x 31 x 20mm without valve |
| Weight (including battery) | 48g |
| Battery | Non-replaceable |
| Pressure range | 0 to 8bar (0 to 116psi) Accuracy ±0.1 bar (1.5psi) |
| Temperature range | -30 to 80°C Accuracy ± 3°C |
| Transmission frequency | 433.92MHz |
| Transmission power | < 10dBm |
| Measurement interval | 6 seconds |
| Transmission interval (no fast leakage) | Five minutes |
| Fast leakage threshold
Low pressure leakage |
If pressure falls 3 psi (0.2bar) continuously within one minute.
Pressure falls 1.5 psi within one minute |
| Sleep function | Yes. Sensor stops transmitting while vehicle is parked and resumes when wheels are turning |
| LF coding function | Yes |
| Hex collar torque | 6.8Nm |
| Fitting procedure | To install the internal sensor, first – the tyre needs to be removed from the wheel. Remove the dust cap from the valve, remove the hexagon collar and washer. Insert the valve into the wheels’ valve hole from the inside of the wheel well:- make sure that the black rubber seal is situated in the valve hole. Slide the washer down over the valve and fit the hex collar with the hexagon uppermost. Tighten the hex collar to a torque of 6.8Nm. Refit the tyre and inflate. Test the valve with soapy water to ensure that there are no air leaks |
